紅焱電子

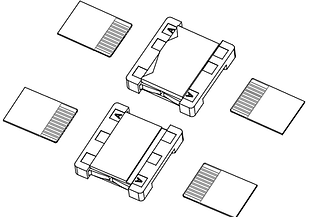

FPC/FFC 連接器
FPC/FFC SERIES
ZIF（零插入力型）可以輕鬆插入排線，幾乎不卡，可有效的鎖定FPC/FFC線。
Lock 構造可以固定排線兩邊的作用，可同時兼顧操作效率和接觸的可靠性高的優點。
Easy-0n R/A
0.3mm 1.0H
Back Flip R/A
0.3mm 1.0H
Easy-0n R/A
0.5mm 1.0H
Back Flip R/A
0.5mm 1.0H
Easy-0n R/A
0.5mm 1.2H
Back Flip R/A
0.5mm 1.2H
ZIF R/A Upper contact
0.5mm 1.2H
ZIF R/A Down contact
0.5mm 1.2H
ZIF R/A Upper contact0.65mm 1.2H
ZIF R/A Upper contact
0.7mm 1.2H
Easy-0n R/A
0.5mm 1.5H
Back Flip R/A
0.5mm 1.5H
Easy-0n R/A
0.5mm 2.0H
Back Flip R/A
0.5mm 2.0H
Easy-0n R/A
0.5mm 2.0H
Back Flip R/A
0.5mm 2.0H
Back Flip R/A
0.5mm 2.0H
ZIF R/A Upper contact
0.5mm 2.0H
ZIF R/A Down contact
0.5mm 2.0H
ZIF S/T Positive pointer
0.5mm 4.5H
ZIF S/T Reversed pointer
0.5mm 4.5H
Double-Side Drawing
0.5mm 2.0H/2.5H
Easy-0n R/A
0.5mm 2.2H
Easy-0n R/A
0.5mm 2.55H
Easy-0n R/A
0.5mm 2.55H
Back Flip R/A
0.5mm 2.7H
Back Flip R/A
0.5mm 2.7H
Non-ZIF S/T Positive pointer
0.5mm 4.0H
Non-ZIF S/T Reversed pointer
0.5mm 4.5H
Non-ZIF S/T Positive pointer
0.5mm 5.2H
Easy-0n S/T Positive pointer
0.5mm 5.4H
ZIF R/A Upper contact
1.0mm 2.5H
ZIF R/A Down contact
1.0mm 2.5H
ZIF S/T Positive pointer
1.0mm 5.5H
ZIF S/T Reversed pointer
1.0mm 5.5H
ZIF S/T
1.0mm 5.5H
Non-ZIF Double-side contact
1.0mm 2.9H
Non-ZIF S/T Positive pointer
1.0mm 4.5H
Non-ZIF S/T Reversed pointer
1.0mm 4.5H
Non-ZIF R/A Down contact
1.0mm 3.0H
Non-ZIF S/T Positive pointer
1.0mm 5.5H
Non-ZIF S/T Reversed pointer1.0mm 5.5H
夾板式1.25mm 3.0H
